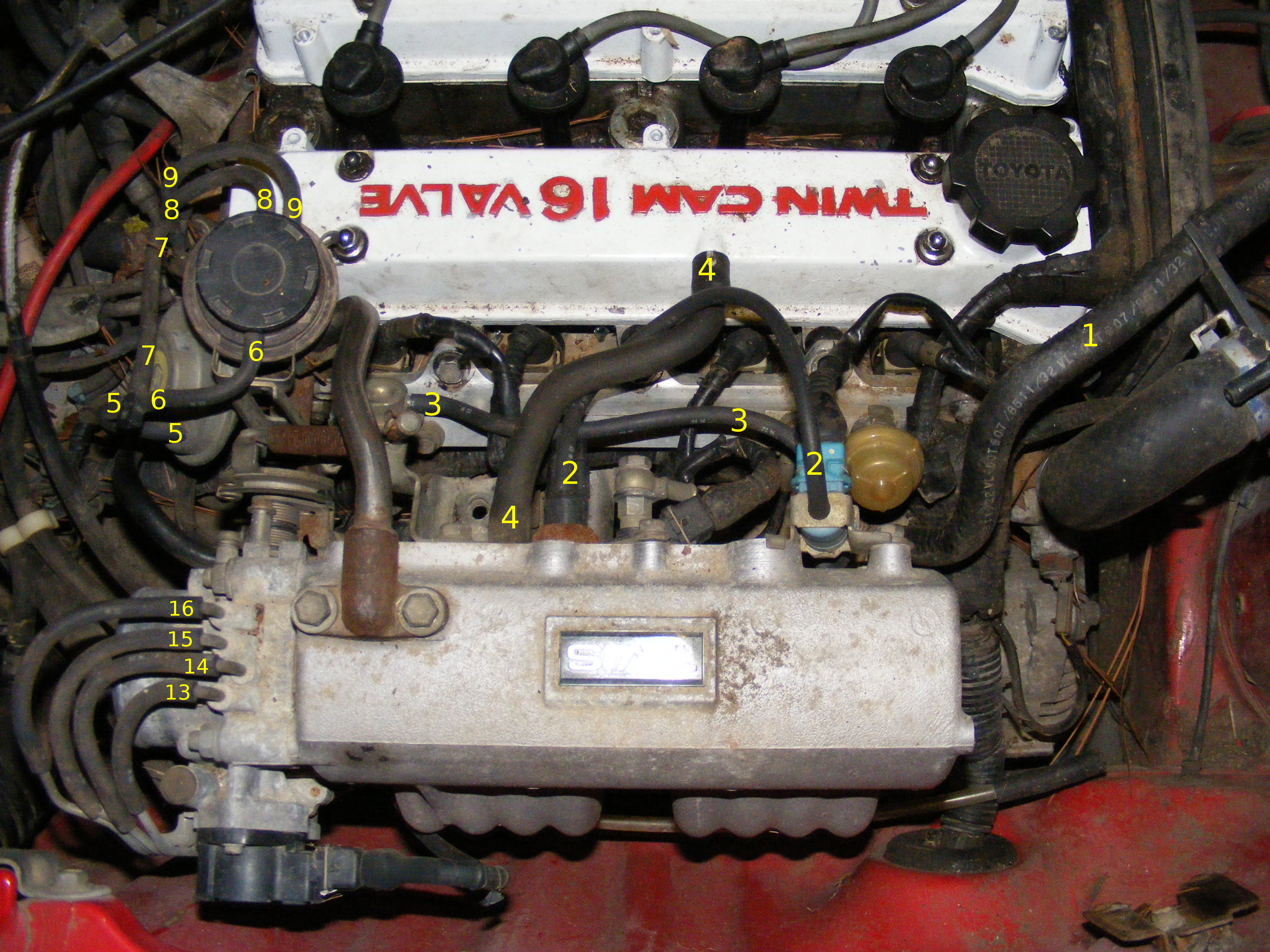

1 | Brake booster line |
| 2 |
| FPR VSV Top to Vac manifold |
|
| 3 |
|
| 4 |
| Valve Cover vent to intake |
|
| 5 |
|
| 6 |
| EGR “T” to port Q on ERG valve |
|
| 7 |
| EGR “T” to hard line (back most) |
|
| 8 |
| EGR valve port P to middle hard line |
|
| 9 |
| EGR valve port R to front hard line |
|
| 10 |
| EGR valve bottom port to hard line |
|
| 11 |
| Throttle body bottom port to black side of filter |
|
| 12 |
| Throttle body POT to red side of filter |
|
| 13 |
| Throttle body top port C to hard line |
|
| 14 |
| Throttle body top port N to hard line |
|
| 15 |
| Throttle body top port E to hard line |
|
| 16 |
| Throttle body top port R to hard line |
|
| 17 |

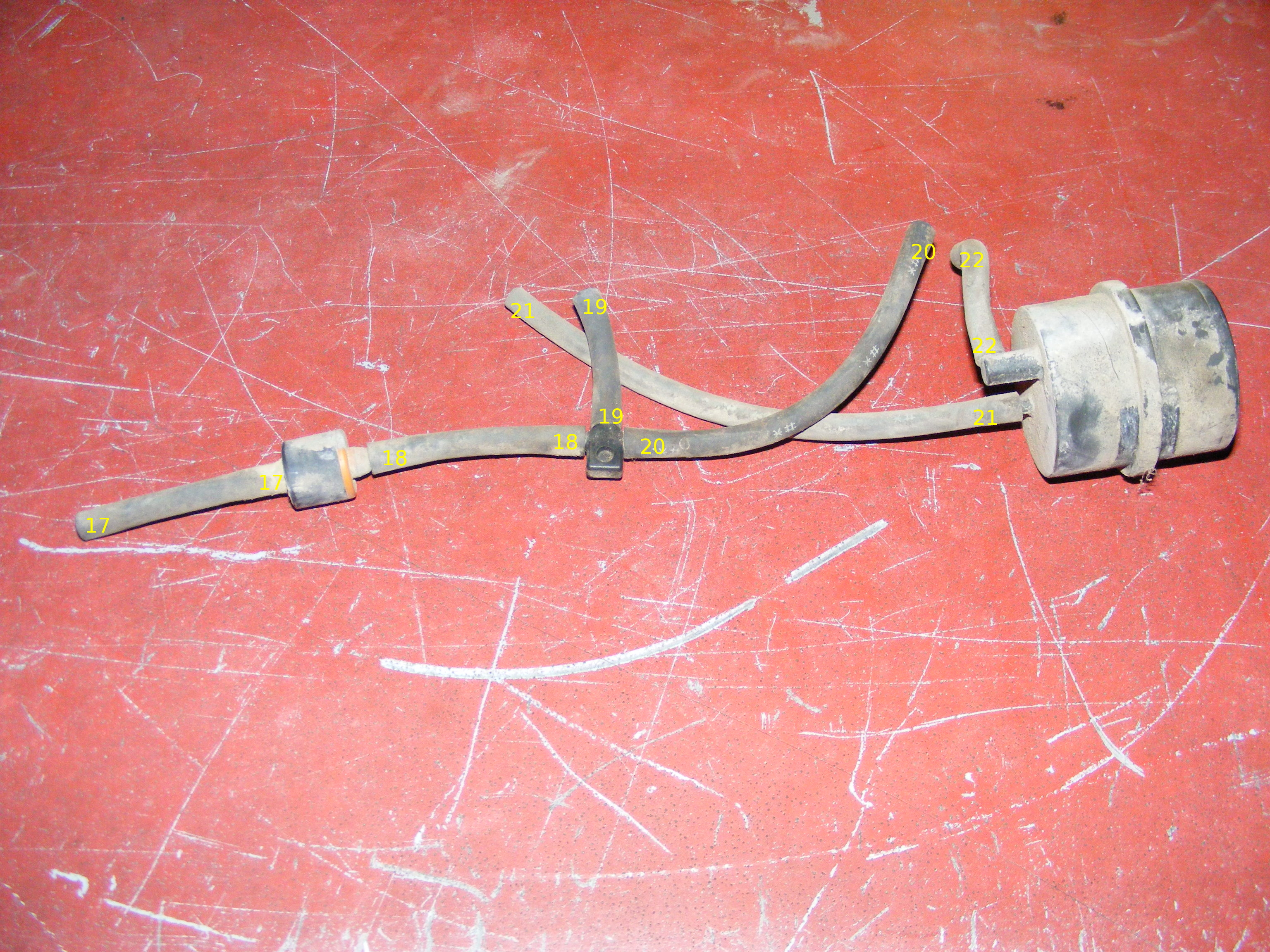

| Hard line to black side of filter under intake |
|
| 18 |
| Orange side of filter under intake to “T” |
|
| 19 |
|
| 20 |
| “T” run to vac port under #2 runner (close to #1) |
|
| 21 |
| Vac can under #1/2 runners straight port to vac port under #3 on TVIS plate |
|
| 22 |
| Vac can under #1/2 runners 90 degree port to vac port under #2 (close to #3) |
|
| 23 |

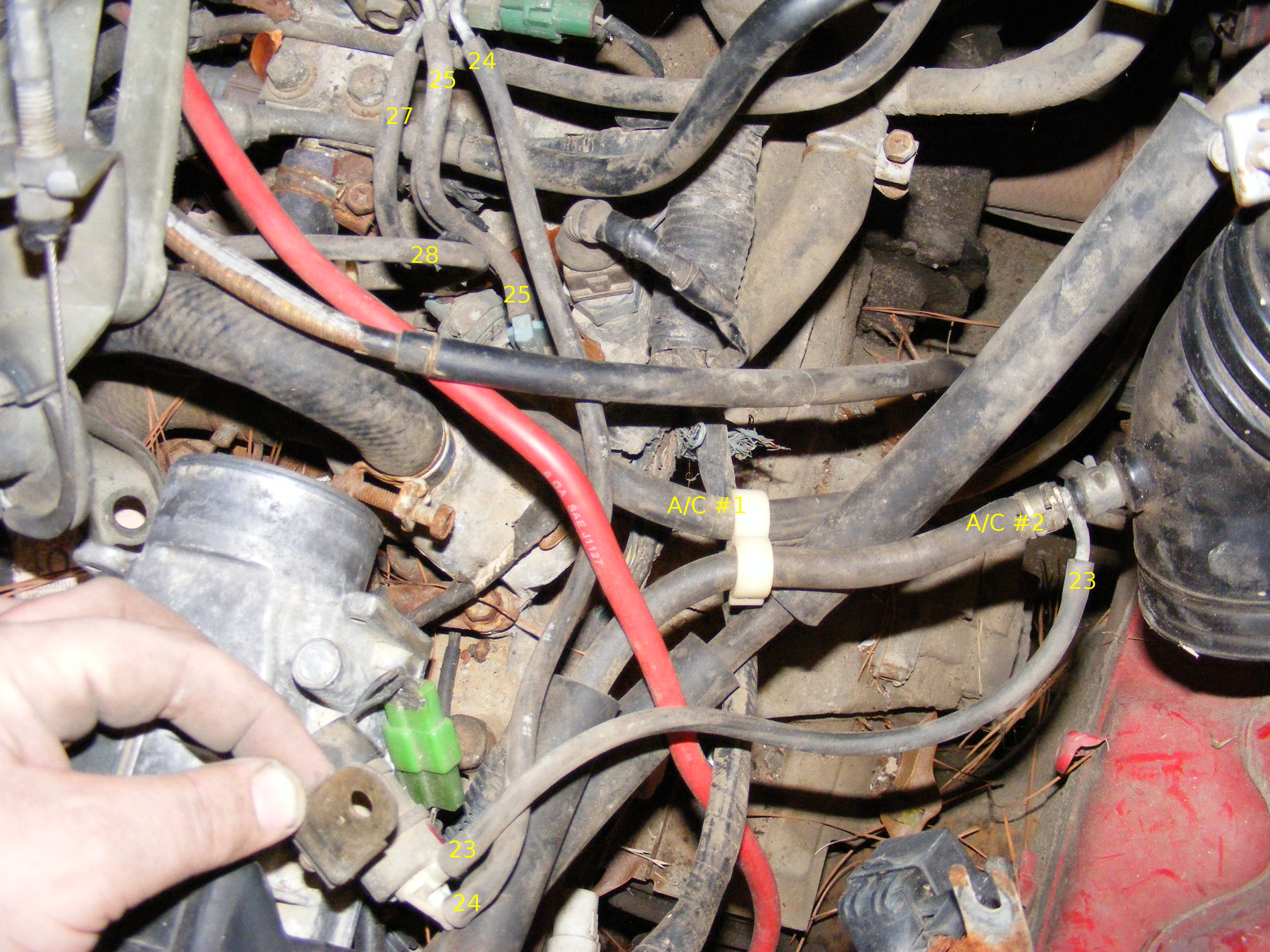

| Intake hose to green plug VSV (bottom port) |
|
| 24 |
| Green plug VSV (top port) to back most hard line |
|
| 25 |

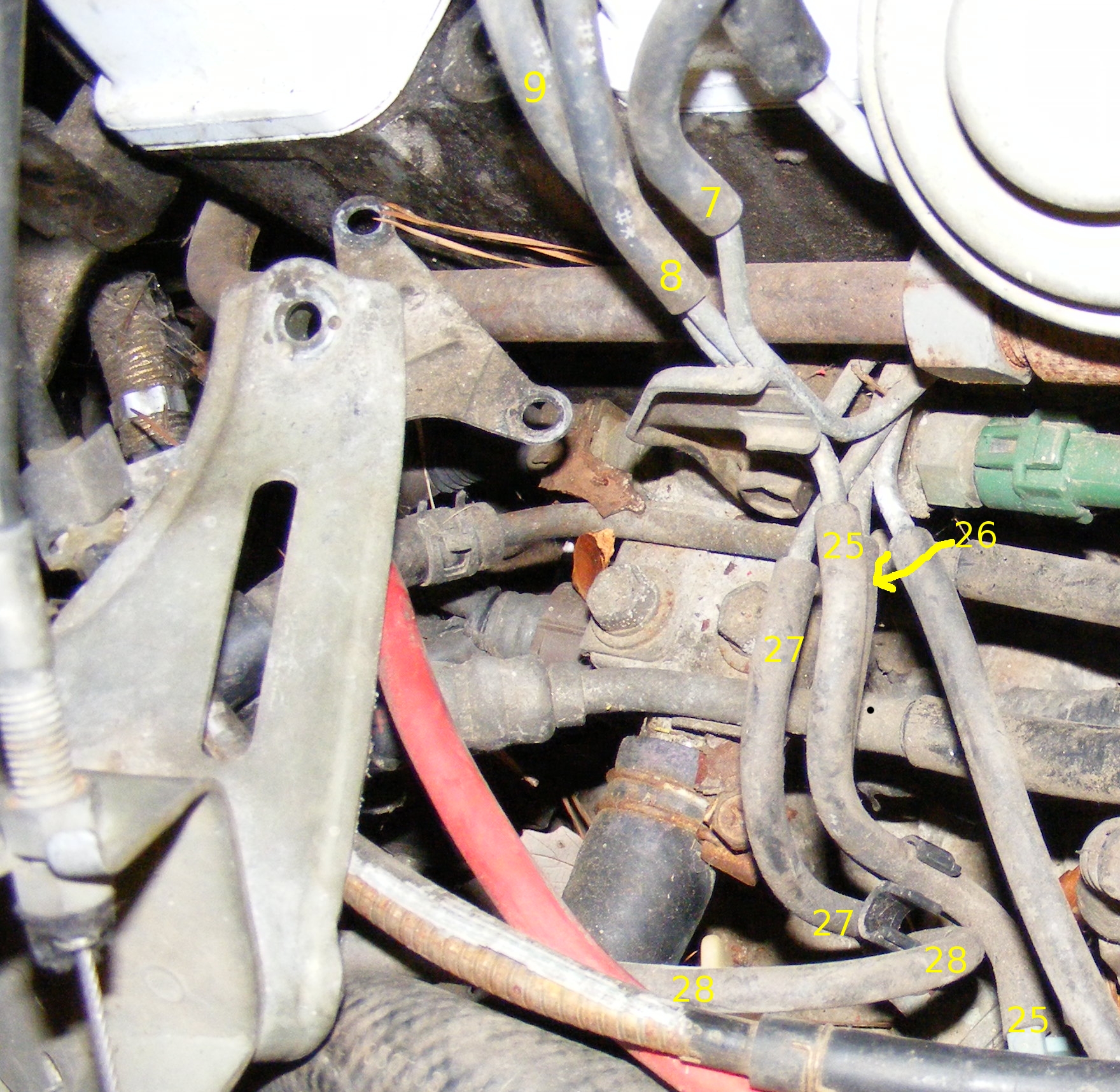

| Top water neck VSV (top port) to hard line connected to port P on EGR valve |
|
| 26 |
| Top water neck VSV (bottom port) to bottom hard line |
|
| 27 |
| Side water neck VSV (top port) to front most hard line |
|
| 28 |
| Side water neck VSV (bottom port) to charcoal can |
|
